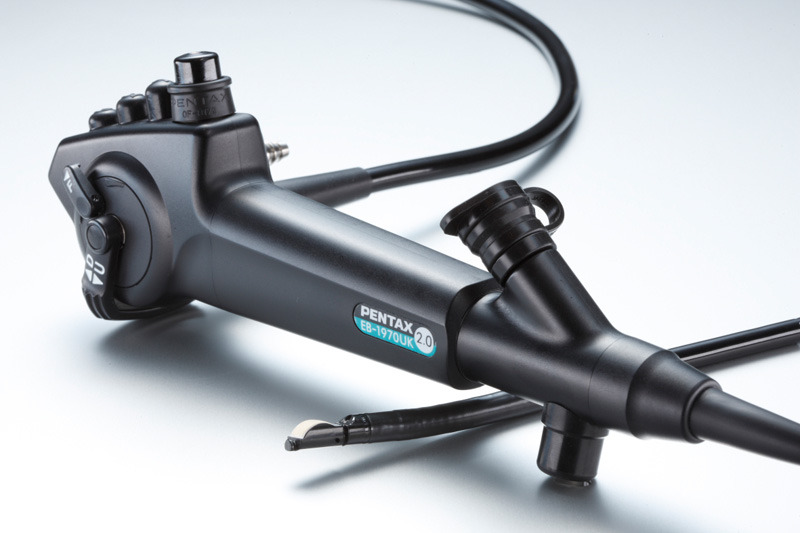

Ultrasound Video Bronchoscope
3800000.0 INR/Piece
Product Details:
- Accuracy High accuracy imaging and localization within 1 mm
- Humidity Range 15-85% RH
- Material Plastic
- Automation Grade Semi-automatic
- Storage Capacity Supports image/video storage up to 128 GB
- Shape Flexible tubular
- Product Type Ultrasound Video Bronchoscope
- Click to view more
X
Ultrasound Video Bronchoscope Price And Quantity
- 1 Piece
- 3800000.0 INR/Piece
Ultrasound Video Bronchoscope Product Specifications
- Color LCD touchscreen
- 10C - 40C (operating)
- Diagnostic and therapeutic bronchoscopy procedures
- Insertion tube diameter: 6.9 mm; Working length: 600 mm
- Integrated LCD monitor
- AC mains
- Control handle: 180 mm
- Endobronchial ultrasound imaging, real-time airway and lung examination
- Simultaneous ultrasound and video visualization
- 50/60 Hz
- For Laboratory Use
- Approx. 1.2 kg
- Single Phase
- Silver
- Electric Watt (w)
- Hospitals, clinics, advanced diagnostic centers
- High-resolution ultrasound and video imaging, steerable tip
- Ultrasound Video Bronchoscope
- Flexible tubular
- Supports image/video storage up to 128 GB
- 100-240V AC
- Semi-automatic
- Plastic
- 15-85% RH
- High accuracy imaging and localization within 1 mm
- High-intensity LED
- Up to 120 upward, 130 downward
- Insertion tube: IPX7
- 2.5 m (console to endoscope)
- 2.0 mm
- USB, HDMI, DICOM-supported
- Yes, compatible with EBUS needle
- 7.5 MHz (sector scanning) / 12 MHz (linear array)
- B-mode, M-mode, Doppler, Color flow
- Ethylene oxide, High-level disinfection
Ultrasound Video Bronchoscope Trade Information
- Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque, Cash Advance (CA)
- 1 Piece Per Day
- 3 Days
- Maharashtra, Goa
Product Description
Since our year of establishment, we are a proud supplier of Ultrasound Video Bronchoscope. This bronchoscope is manufactured at our vendors end utilizing latest techniques and the best grade components by diligent professionals. The offered bronchoscope comes with LCD for easy visibility of operational instructions and is widely used in hospitals, clinics, diagnostic centers and laboratories during ultrasound. Additionally, this Ultrasound Video Bronchoscope can be availed in variety of specifications at economical prices.
Features:
- Less maintenance
- Low power consumption
- Excellent performance
- Compact design
Product Specifications
| Product | Insertion Tube Diameter | Instrument Channel Diameter * | Working Length | Total Length | Angle of View | Focal Range | Angulation | Right / Left |
| EB-1990i | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
(mm) |
|
| 6.4 | 1.2 | 600 | 860 | 120 | 3 - 50 | 180 / 130 | 0 |
Integrated Imaging Excellence
Synchronized ultrasound and video imaging are made possible with this bronchoscope's dual frequency probe, allowing clinicians to visualize airways and surrounding tissues in real time. The sector and linear array settings, along with multiple imaging modes like B-mode, M-mode, Doppler, and color flow, offer comprehensive evaluation for diagnostics and interventions.
User-Oriented Design for Enhanced Procedures
Designed for ease of maneuverability and ergonomics, this bronchoscope features up to 120 upward and 130 downward tip bending, as well as a 2.0 mm working channel compatible with EBUS needles. The lightweight build, integrated biopsy port, and intuitive LCD touchscreen empower users to perform precise diagnostic and therapeutic bronchoscopic procedures with confidence and control.
Advanced Sterilization and Compliance
The instrument supports high-level disinfection and ethylene oxide sterilization, providing safety and hygiene in compliance with hospital protocols. Its waterproof IPX7-rated insertion tube, robust material, and DICOM-supported digital output make it suitable for rigorous laboratory and clinical environments.
FAQ's of Ultrasound Video Bronchoscope:
Q: How is the Ultrasound Video Bronchoscope used in clinical or diagnostic settings?
A: This bronchoscope is primarily utilized for endobronchial ultrasound imaging and real-time airway or lung examination. It enables simultaneous ultrasound and video visualization, supporting diagnostic and therapeutic bronchoscopy procedures with high image clarity and precise targeting.Q: What types of imaging modes does the bronchoscope support?
A: It features B-mode, M-mode, Doppler, and color flow imaging, allowing healthcare professionals to conduct thorough anatomical evaluations, vascular assessments, and dynamic studies during a single procedure.Q: When should I perform sterilization and what methods are supported?
A: Sterilization should occur before and after each use. The bronchoscope supports high-level disinfection as well as ethylene oxide sterilization to maintain safety and prevent cross-contamination.Q: Where can the data and images captured by the bronchoscope be stored or exported?
A: Captured images and videos can be stored on the device, which supports storage up to 128 GB. Data export is possible via USB, HDMI, or DICOM-supported ports for seamless integration into hospital records and analysis systems.Q: What is the process for performing a biopsy with this bronchoscope?
A: The bronchoscope features a dedicated biopsy port and is compatible with standard EBUS needles. After navigation and localization of the target, a biopsy needle can be introduced through the working channel for precise tissue sample collection under real-time ultrasound guidance.Q: How does the device enhance procedural accuracy and patient safety?
A: Its high-resolution imaging with sub-millimeter accuracy, steerable tip for improved maneuverability, and real-time visualization capabilities all contribute to accurate diagnoses and safer, more effective interventions within airways and lung regions.Q: What are the primary benefits of using this bronchoscope over traditional models?
A: Major benefits include integrated ultrasound-video imaging, advanced maneuverability, digital image export, high-level disinfection compatibility, and enhanced procedural accuracy, making it ideal for advanced diagnostics and interventions in modern healthcare settings.Tell us about your requirement
